Features:
1. Colorful backlight display changeale on temperature changes.
2. Supports 11 different hue backlight
3. Indoor temperature and humidity
4. Wireless outdoor temperature and humidity
5. Feels like and dew point
6. Barometric pressure
7. Weather forecast based on pressure changes
8. Wind speed (mph, m/s, km/h, knots, and bft)
9. Wind direction
10. Rainfall data (inch or mm): 1 hour, 24 hours, week, month, and total
11. Moon phase
12. In/outdoor(CH1-CH8) temperature and humidity graph
13. Pressure, Wind speed and Rainfall graph
14. Weather alarms on: temperature, humidity, dew point, feels like, rainfall, wind speed, wind gust and pressure
15. Min/Max records of temperature, humidity, rainfall, wind speed, wind gust, dew point, feels like and pressure.
16.USB port for easy connection to your PC
17. Free PC software for transfer of weather data to PC
18. Can receive up to 8 thermo-hygrometer sensors
19. Time, time/week and calendar Display.
20. Time alarm
21. Low power indicator
22. Wall hanging or free standing
Specifications:
Outdoor temperature range | -40℃ to + 60℃ |
Indoor temperature range | 0℃ to + 60℃ |
Temperature accuracy | ±1ºC |
Humidity range | 10% to 99% (1% resolution) |
Humidity accuracy | ±5% |
Barometric pressure range | 300 to 1100hpa |
Barometric Accuracy | ±3hpa |
Rain volume | 0 - 9999mm |
| 1) Resolution : 0.3mm (if rain volume < 1000mm) |
| 2) 1mm (if rain volume > 1000mm) |
Rain accuracy | < 15 mm: +/- 1 mm, 15 mm to 9999 mm: +/- 7% |
Wind speed accuracy | 2 m/s ~ 10 m/s (+/- 3 m/s), 10 m/s ~ 56 m/s (+/- 10%) |
Wind direction accuracy | 8 points |
Wind speed range | 0~50m/s |
Transmission interval | 16s |
Transmission frequency | 433MHZ |
Transmission range | 100m in open area |
Maximum transmission power | 0.5mW |
Type of modulation | ASK |
Power consumption
1) Receiver: 3 x AA alkaline batteries
2) Thermo-hygrometer Sensor : 2 x AAA alkaline batteries
3) Rain sensor: 4xAAA alkaline batteries
4) Wind sensor: 4xAAA alkaline batteries
Battery life: Minimum 12 months for receiver
Minimum 12 months for transmitter
Dimensions(HXWXD):
Receiver: 153x210x26mm
Thermo-hygro Sensor: 45x110x21mm
Rain sensor: 170x140x207mm
Wind sensor: 214x205mm

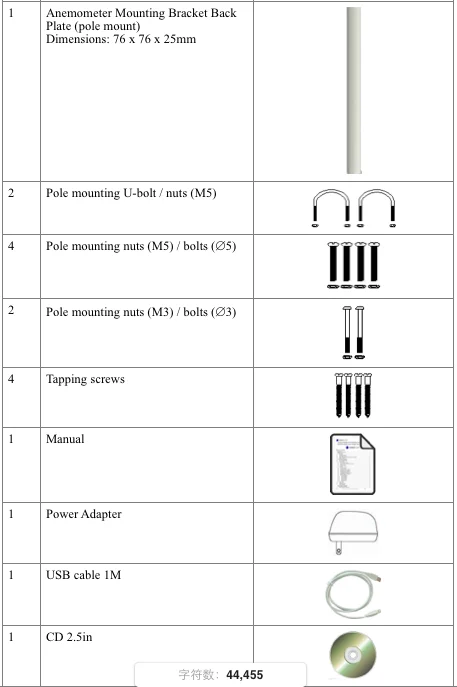

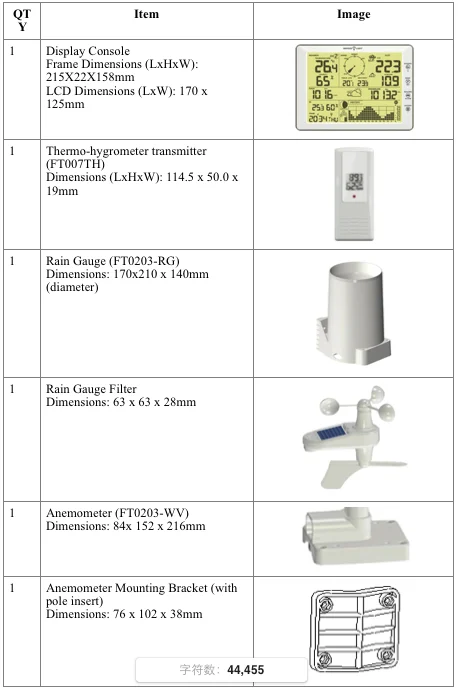

Part List
